Think of aircraft part numbers as a highly specialized language. To an untrained eye, they look like a random string of characters. But for anyone in aviation maintenance, they tell a critical story. Misinterpreting a single digit can mean ordering the wrong component, causing costly delays and serious safety risks. This guide acts as your translator. We'll break down the anatomy of any aircraft part number, from manufacturer codes to what an alternate part number really means, so you can manage your inventory with confidence.
This article examines the anatomy of aircraft part numbering systems, explaining how manufacturers devise unique codes and how aircraft operators use them for inventory control, regulatory compliance, and procurement activities.
An aircraft part number is a unique alphanumeric code assigned by the original equipment manufacturer (OEM) or a qualified parts manufacturer approval (PMA) holder to identify a specific component. This number is the primary identifier that distinguishes one part from another, even if they appear visually similar, ensuring the correct component is used for a specific application. The part number contains crucial information about the component, such as its design specifications, manufacturing origin, and any modifications it may have undergone.
When an original part for a plane is not readily available, a functionally interchangeable replacement part may be used. This is known as an alternate aircraft part. An alternate part number is used to identify this part. Alternate part numbers often arise when OEMs replace an existing part number due to design changes or material updates, or when multiple manufacturers produce the same component under approved identifiers.
However, not all replacement parts are automatically interchangeable. If made by a different manufacturer, the part must be approved, usually through FAA PMA or equivalent international certification. Aircraft operators must verify approval to ensure airworthiness and regulatory compliance.
Locating the correct part number is a critical first step in any maintenance or repair task. An incorrect number can lead to ordering the wrong component, causing costly delays and potential safety risks. Fortunately, maintenance teams have several reliable methods for identifying the exact part they need. The traditional approach involves consulting detailed technical manuals, while modern methods use digital databases and integrated management software to speed up the process. Both approaches have their place in a well-run maintenance operation, and understanding how to use them effectively is key to maintaining fleet readiness and compliance.
The most fundamental method for finding a part number is to consult the aircraft's technical manuals. These documents are the definitive source of information provided by the manufacturer. They contain exhaustive lists of every component, complete with diagrams, descriptions, and their corresponding part numbers. For maintenance teams, these manuals are the ultimate authority on what goes where. While this method is incredibly reliable, it can also be time-consuming. Technicians may need to sift through hundreds of pages in physical binders or static PDF files to pinpoint a single component, which can slow down operations on the hangar floor.
When you need to identify specific types of components, certain manuals are more helpful than others. The Structural Repair Manual (SRM) is your go-to resource for any part related to the aircraft's airframe, such as fuselage panels, fasteners, and support structures. For electrical components, the Wiring Diagram Manual (WDM) is essential. It provides detailed schematics of the aircraft's wiring systems, helping you find the correct numbers for connectors, wires, and circuit breakers. Using these specialized manuals ensures you get the precise identifier for the job, which is crucial for both structural integrity and systems functionality.
To accelerate the identification process, many organizations now use digital search tools and online databases. Platforms like AIRNAVX and specialized databases from suppliers like ISO Group allow technicians to quickly search for parts using various criteria. While these tools are faster than paper manuals, the most effective solution integrates part identification directly into your workflow. An all-in-one system provides a centralized source of truth, linking part numbers not just to a catalog but to real-time inventory levels, maintenance history, and procurement orders. This ensures that from the moment a part is identified, its entire lifecycle is managed within a single, cohesive platform, minimizing errors and preventing disruptions.
The structure of an aircraft part number is not arbitrarily decided. Let's examine the two commonly used systems.
Aircraft part numbers typically consist of three main segments: a prefix, a main number, and a suffix. Each segment uniquely identifies the part and provides details about its characteristics.
The order of letters, numbers, dashes, and slashes in a part number contributes to the uniqueness of the identifier and conveys specific information according to the manufacturer's system. Even a seemingly minor difference in the sequence can denote an entirely different part, which may lead to maintenance errors and operational issues.
Leading aircraft and component manufacturers have developed proprietary part numbering systems that reflect their internal organization and product lines.
Let's look closer at the prefixes and symbols within a part number. Think of them as a shorthand language that tells a part's story. The prefix, that initial set of letters or numbers, is your first clue, often pointing directly to the manufacturer. For example, a "BA" prefix might signify a Boeing-specific part, while "LR" could indicate a component from Learjet. This simple identifier helps you quickly source or categorize a part. But the code doesn't stop there. The specific order of letters, numbers, dashes, and slashes all carry weight, conveying critical information according to the manufacturer's unique system.
A dash in the wrong place or a different suffix can signify a completely different component, even if the main number looks the same. This could be the difference between a left-hand and a right-hand version or a part made from an updated material. Getting this wrong isn't just an inconvenience; it can lead to serious maintenance errors and operational delays. Keeping track of these nuances across thousands of parts is a massive undertaking, which is why many MROs rely on specialized software for aircraft inventory management to automate validation and ensure accuracy.
Accurate handling of aircraft part numbers is critical to aviation operations. Their correct interpretation and management help:
Regulatory bodies like the FAA (Federal Aviation Administration) and the EASA (European Union Aviation Safety Agency) mandate the use of only approved parts on aircraft. Part numbers assist in verifying that a component meets the necessary airworthiness standards and is traceable to its origin.
During maintenance, technicians rely on part numbers to identify the exact components that need to be replaced or serviced. Using the correct part number prevents the installation of incorrect or incompatible parts, which reduces safety hazards and streamlines the maintenance process.
Part numbers help procurement teams order the correct components from suppliers. Accurate part numbers ensure that the received parts match the requirements. In inventory management, part numbers help track the quantity, location, and status of each component. This allows operators to maintain optimal stock levels and avoid shortages or overstocking.
Part numbers are essential for tracking a component's history throughout its operational life. This includes tracking installations, removals, repairs, and modifications. This traceability is necessary for investigating incidents, managing warranties, and complying with airworthiness directives.
A critical document in this process is the FAA Form 8130-3, also known as the Authorized Release Certificate or Airworthiness Approval Tag. This form is the official document used to certify that a new or repaired part meets the required airworthiness standards. Think of it as a passport for aircraft components. It provides a consistent and reliable method for identification, accountability, and traceability within the global aviation supply chain. The presence of an authentic 8130-3 form assures maintenance teams and operators that a part has the necessary FAA-required documentation, confirming its eligibility for installation.
Back-to-birth traceability is the practice of documenting a component's entire history, from its original manufacturing date to its current status. This comprehensive record includes every installation, removal, repair, and modification the part has undergone. This level of detail is not just for administrative purposes; it is essential for investigating incidents, managing warranties, and complying with airworthiness directives. Maintaining a clear and unbroken chain of custody ensures that every part on an aircraft is authentic and has been maintained according to strict regulatory standards. A robust aircraft document management system is key to maintaining these complex records accurately and efficiently.
Using incorrect part numbers can result in financial losses due to the costs of wrong parts, rework, and operational disruptions. The aviation industry also faces the risk of counterfeit parts entering the supply chain. Relying on verified part numbers and reputable suppliers is a key defense against these issues.

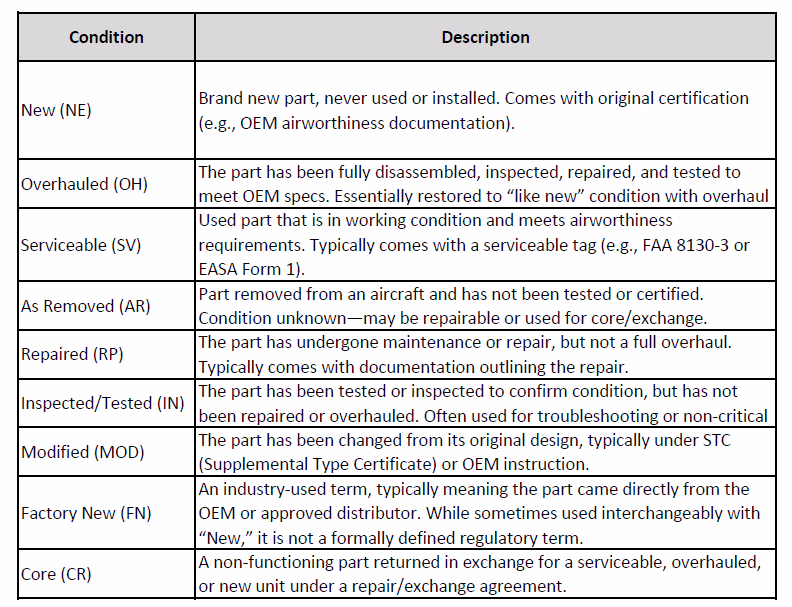

Aircraft parts are identified by their condition, which indicates their status and suitability for installation. Here are common aircraft part conditions with their descriptions:
When you see a part listed as New (NE) or Factory New (FN), it means the component is fresh from the Original Equipment Manufacturer (OEM) and has never been installed on an aircraft. These parts come with complete traceability and certification, offering the highest level of quality and the longest potential service life. Another category you’ll encounter is New Surplus (NS). These parts are also new and have never been used, but they weren't purchased directly from the OEM. Instead, they might come from a company that bought excess inventory from an airline or another operator. While NS parts can be a cost-effective option, it's crucial to verify their documentation and storage history to ensure they haven't degraded over time.
An overhauled part is much more than just a repaired component. When a part is overhauled, it’s completely disassembled, cleaned, inspected, and restored to meet or even exceed the OEM's original specifications. Every piece is meticulously checked, and any worn or damaged components are replaced. After reassembly, the part undergoes rigorous testing to ensure it performs like new. This process must be completed by a certified repair station, and the part comes with documentation detailing the work performed. Choosing an overhauled part can provide performance comparable to a new one but at a lower cost, making it a reliable and economical choice for many maintenance operations.
A repaired part has undergone maintenance to correct a specific fault and restore it to a functional, airworthy condition. Unlike an overhauled part, a repaired component is not completely disassembled and rebuilt to original specifications. Instead, the work focuses only on the area that failed or was damaged. The part is tested to ensure it works correctly, but it may not have the same expected lifespan as a new or overhauled unit. Repaired parts are a practical solution for addressing specific issues and can be a cost-effective way to get an aircraft back in service, provided the repair is properly documented and certified by an authorized facility.
The term "Serviceable" is a broad classification for a part that is fit for installation on an aircraft. A serviceable part has been inspected and tested according to regulations and is deemed airworthy. This category can include used parts that were removed from an aircraft during an upgrade or teardown but are still in good working condition. It can also include parts that have been previously repaired or overhauled. The key takeaway is that a serviceable part comes with the necessary certification, like an FAA 8130-3 or EASA Form 1, confirming it has passed all required checks and is ready for use. It’s a common and reliable option in the aviation parts market.
When a part is listed as "As Removed," it means exactly that—it was taken off an aircraft and is being sold in its current, "as-is" condition. These parts have not been inspected, tested, or certified since their removal. Buying an AR part carries the most risk because its functionality is unknown. It could be perfectly fine, or it could be completely unusable. An AR part must be sent to a certified repair station for full inspection, testing, and recertification before it can be installed. While the initial purchase price might be low, the total cost can increase significantly after factoring in the necessary evaluation and potential repairs.
Understanding part conditions is the first step, but the purchasing process itself has its own set of variables. From how you buy the part to how long you'll wait for it, every detail matters. Keeping your fleet operational requires a smart approach to procurement, balancing cost, availability, and compliance. An integrated system for purchasing and inventory can help manage these complexities, ensuring you make the best decisions for your maintenance schedule and budget. Let's look at a few key factors to consider before you finalize a purchase.
You generally have two ways to buy a part: outright or on exchange. An outright purchase is simple—you pay the full price for the component, and it's yours to keep. This is common for smaller, less expensive parts. The second option, an exchange, is often used for more expensive, rotable components. In an exchange, you purchase a serviceable part from a supplier at a reduced price by trading in your unserviceable part, known as the "core." The supplier then overhauls the core and adds it to their inventory. This model is cost-effective, but be sure to read the terms carefully, as additional fees may apply if your core is deemed beyond economical repair.
A great price on a part doesn't mean much if it won't arrive in time. Lead time—the period between placing an order and receiving the part—is a critical factor in aircraft maintenance planning. An Aircraft on Ground (AOG) situation demands immediate part availability, where cost becomes secondary to speed. For routine maintenance, you have more flexibility to find a balance between price and delivery schedule. This is where effective aircraft maintenance management becomes essential. By tracking usage rates and component life cycles, you can anticipate needs and order parts in advance, avoiding costly delays and ensuring your operations run smoothly.
Never overlook the paperwork. Every part you purchase should come with a warranty and the correct certification. The length and terms of a warranty can vary significantly based on the part's condition—a new part will typically have a much longer warranty than a repaired one. Always confirm these details with the seller. Equally important is the certification, such as an FAA Form 8130-3 or EASA Form 1, which serves as the part's passport, proving its airworthiness. For parts with a limited shelf life, like seals or adhesives, you also need to check the manufacture or "cure" date to ensure it's still viable for installation.
Despite their critical importance, managing aircraft part numbers can present some challenges for operators that might impact, increase costs, and even pose safety risks:
Many aviation operations still rely on outdated, manual systems or disparate software for inventory management. These systems often lack the sophistication to handle the complexities of modern part numbering systems, leading to errors and inefficiencies.
Keeping track of a part's complete history, including repairs, modifications, and service life, can be challenging, especially with manual systems. This lack of comprehensive tracking can complicate maintenance planning and regulatory compliance.
Over time, manufacturers may supersede part numbers, leading to confusion and the potential for using outdated or incorrect components if not managed properly. Duplicate part numbers within a system can also cause significant inventory management issues.
The complexity of part numbering systems and the vastness of the supply chain increase the risk of ordering the wrong parts. Furthermore, the lack of robust verification processes can expose operators to the danger of unknowingly procuring counterfeit components.
In organizations with poor communication between maintenance, procurement, and inventory departments, discrepancies in part number understanding and usage can arise, which may lead to errors and costly delays.
Manufacturers constantly refine aircraft components for better performance, safety, or material availability. When a part is updated, it often receives a new part number, and the old one is "superseded." This means the original part is now obsolete and replaced by the newer, approved version. Staying on top of these changes is essential for compliance and airworthiness. Using a superseded part when an updated one is required can lead to maintenance errors and safety risks. A robust inventory management system is crucial for tracking these updates, ensuring your stock always reflects the latest revisions and that technicians are installing the correct, current components.
It might seem counterintuitive, but different manufacturers can sometimes use the exact same part number for completely different components. This creates a significant risk during procurement and receiving if your team relies solely on the number itself. To avoid this, it's critical to verify the part against the manufacturer's CAGE code and cross-reference it with the aircraft's Illustrated Parts Catalog (IPC). This extra verification step ensures you're not just getting a part with the right number, but the right part from the right manufacturer for the specific application, preventing the installation of an incorrect and potentially dangerous component.
While many aircraft parts are clearly marked with their number, smaller items like screws, washers, or o-rings often are not. For these components, the only identification is on the packaging they arrive in. This presents a major challenge for inventory control. If a bag of unmarked fasteners is opened and the parts are placed in a bin without proper labeling, their identity and traceability are lost. This is why strict receiving procedures are so important. Your team must ensure that part information from the packaging is meticulously transferred into your maintenance management software before the items are stocked.
To streamline manufacturing and logistics, it's common for parts to be shared across different aircraft models, especially when a newer plane is an evolution of an older design. For example, a component might be approved for use on several variants within the Boeing 737 family. While this interchangeability can simplify stocking, it also demands careful management. Technicians must always confirm that a shared part is approved for the specific aircraft they are working on by consulting the relevant technical documentation. Assuming compatibility without verification can lead to non-compliance and compromise the aircraft's integrity.
SOMA Software offers a comprehensive aircraft inventory management system designed to address the challenges associated with managing aircraft part numbers. It leverages advanced technology and the following features to give operators better inventory control:
Managing aircraft parts inventory is a complex task, but with the right tools, operators can improve accuracy, compliance, and operational efficiency. SOMA Software offers a modern solution to the intricate challenges of aircraft inventory management.
The platform allows aircraft operators to track and manage parts accurately and source parts through real-time part number identification, visual verification, and comprehensive lifecycle tracking. So, say goodbye to the complexities of legacy systems and fragmented data, and hello to a more streamlined method.
Simplify your operations today—let’s get started!
What's the real difference between an overhauled and a repaired part? Think of it this way: a repaired part has had a specific problem fixed to make it airworthy again. An overhauled part, however, is completely taken apart, inspected piece by piece, and rebuilt to meet the manufacturer's original standards, often replacing components that haven't failed yet but show wear. An overhauled part is essentially restored to a like-new condition, while a repaired part is simply restored to a working condition.
Why is a small difference in a part number, like a suffix, so important? That small suffix or dash can signify a critical difference that isn't visible to the naked eye. It could mean the part is for the left side instead of the right, is made from an updated, stronger material, or has a different finish. Ignoring these details can lead to installing an incompatible component, which creates serious safety risks and can ground an aircraft.
How do I know if an alternate part is approved for my aircraft? You should never assume an alternate part is approved, even if it comes from a reputable source. The ultimate source of truth is the aircraft's technical documentation, like the Illustrated Parts Catalog (IPC) or a specific service bulletin from the manufacturer. These documents will list all approved original and alternate part numbers for a specific application, ensuring you remain compliant and maintain airworthiness.
What should I do if a part number has been superseded? When a manufacturer supersedes a part number, it means they have replaced an older design with a newer, improved one. Your first step is to consult the manufacturer's documentation to confirm the change. In most cases, you should stop ordering the old part and begin using the new, superseding number for all future maintenance and procurement to ensure you are using the most current and approved component.
What's the biggest risk with buying a part listed as 'As Removed'? The biggest risk is the complete uncertainty of its condition. An "As Removed" part has no guarantee of being functional and comes without any airworthiness certification. While the initial price might be tempting, you could be buying a component that is completely unusable or requires extensive and costly repairs to be made serviceable. You are essentially taking a gamble on its history and functionality.
